Module 5: Graph RAG

Module 5: Graph RAG#

Part of the RCD Workshops series: Retrieval-Augmented Generation (RAG) for Advanced Research Applications

So far, retrieval found text snippets. What if your knowledge isn’t just documents—but a knowledge graph?

from utils import create_answer_box
create_answer_box('Describe your level of familiarity with knowledge graphs.', question_id='mod4_knowledge_graph_background')

Describe your level of familiarity with knowledge graphs.

What is Graph RAG?#

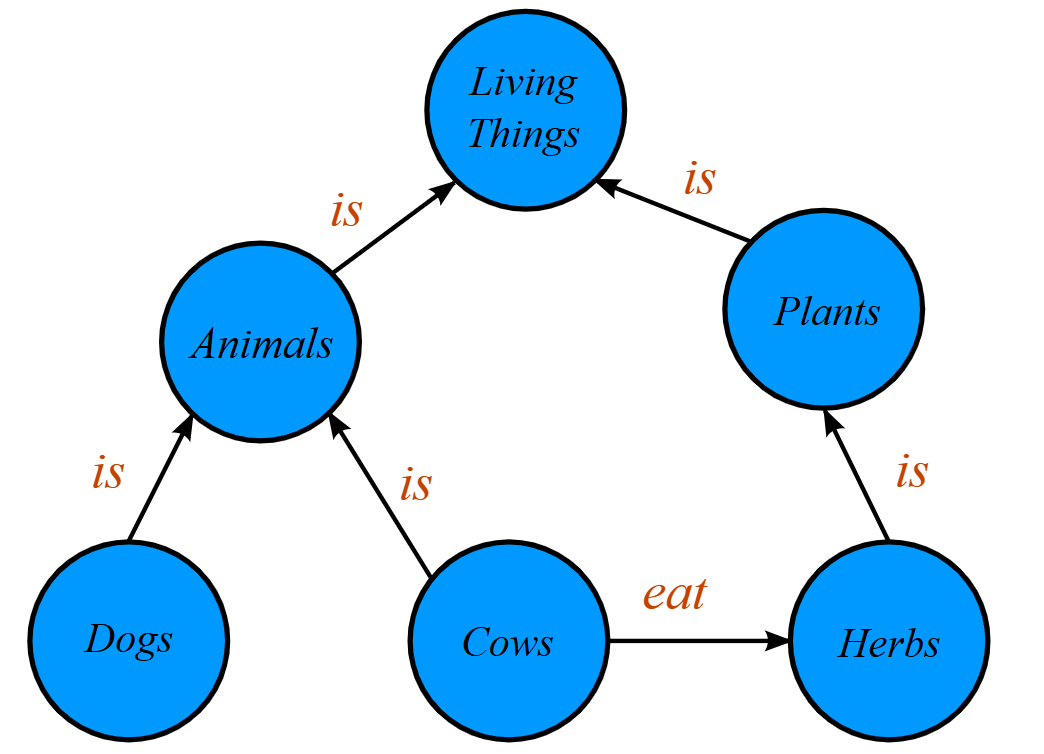

A knowledge graph (KG) organizes data as entities (nodes) and relationships (edges): facts like (Subject —relation→ Object). Graphs let you represent links across topics and discover answers even when no single document states them directly.

knowledge_graph

5.1 Why Knowledge Graphs?#

  • Multi-hop answers: Answer questions that require tracing connections (e.g., “Which startups were founded by former Google employees?”).

  • Structured queries (SPARQL, Cypher): Let LLMs generate graph queries from user input.

  • Context beyond text: Some info is implicit and scattered across documents, but explicit in the graph.

5.2 Approaches#

  1. Vector-based retrieval over nodes/edges: Treat node/edge texts as documents; embed and run semantic search (baseline RAG, but on graph content).

  2. Prompt-to-Graph Query: Use the LLM to translate the user’s question to a graph query (e.g. SPARQL/Cypher), then fetch subgraph to answer.

  3. Hybrid: Use vectors to find graph entities, then expand by graph traversal.

5.3 Hands-on Demo: Building/Querying a Knowledge Graph#

Let’s use NetworkX to create and query a tiny toy KG.

Dataset: Demo Corpus#

We will use a tiny mixed-domain corpus (AI, Climate, Biomedical, Materials) stored in data/demo_corpus.jsonl.

from pathlib import Path
import pandas as pd

DATA_PATH = 'data/demo_corpus.jsonl'
df = pd.read_json(DATA_PATH, lines=True)
docs = df.to_dict('records')
print(f'Loaded {len(docs)} docs from {DATA_PATH}')
display(df[['id','title','year','authors','topics']].head())

Loaded 18 docs from data/demo_corpus.jsonl
id title year authors topics
0 2508.05366 Can Language Models Critique Themselves? Inves... 2025 [Samy Ateia, Udo Kruschwitz] [NLP, Retrieval, Language Model, Biomedical]
1 2508.07326 Nonparametric Reaction Coordinate Optimization... 2025 [Polina V. Banushkina, Sergei V. Krivov] [ML, Climate]
2 2508.07654 MLego: Interactive and Scalable Topic Explorat... 2025 [Fei Ye, Jiapan Liu, Yinan Jing, Zhenying He, ... [Databases, IR]
3 2508.07798 Generative Inversion for Property-Targeted Mat... 2025 [Cheng Li, Pengfei Danga, Yuehui Xiana, Yumei ... [Materials, ML]
4 2508.08140 Data-Efficient Biomedical In-Context Learning:... 2025 [Jun Wang, Zaifu Zhan, Qixin Zhang, Mingquan L... [NLP, Retrieval, Language Model, Biomedical]
import networkx as nx
# Build a heterogeneous graph from the demo corpus: Authors, Papers, Topics
G = nx.DiGraph()

# Limit to a small subset for readable visualization
MAX_PAPERS = 20
records = df.head(MAX_PAPERS).to_dict('records')

for rec in records:
    pid = rec.get('id')
    title = rec.get('title', '')
    year = rec.get('year')
    topics = rec.get('topics', []) or []
    authors = rec.get('authors', []) or []
    # Paper node
    G.add_node(pid, type='Paper', title=title, year=year)
    # Author -> Paper edges
    for author in authors:
        G.add_node(author, type='Author')
        G.add_edge(author, pid, relation='authored')
    # Paper -> Topic edges
    for topic in topics:
        G.add_node(topic, type='Topic')
        G.add_edge(pid, topic, relation='has_topic')

print(f'Graph built: {G.number_of_nodes()} nodes, {G.number_of_edges()} edges')
print('Node types:', {t for t in set(nx.get_node_attributes(G, 'type').values())})

Graph built: 111 nodes, 140 edges
Node types: {'Author', 'Topic', 'Paper'}

5.3.1 Visualizing the Graph#

A quick view of the nodes (Researchers vs Papers) and edge relations.

import matplotlib.pyplot as plt
from matplotlib.lines import Line2D
import numpy as np
# Layered radial layout: Topics outer ring; Papers and Authors near related topics
node_types = nx.get_node_attributes(G, 'type')
topics = [n for n, t in node_types.items() if t == 'Topic']
papers = [n for n, t in node_types.items() if t == 'Paper']
authors = [n for n, t in node_types.items() if t == 'Author']

R_TOPIC, R_PAPER, R_AUTHOR = 1.0, 0.68, 0.25
rng = np.random.default_rng(42)

pos = {}

# Place topics evenly on a circle
angles = np.linspace(0, 2*np.pi, max(len(topics), 1), endpoint=False)
topic_angle = {}
for i, topic in enumerate(topics):
    theta = angles[i % len(angles)] if len(angles) else 0.0
    topic_angle[topic] = theta
    pos[topic] = (R_TOPIC*np.cos(theta), R_TOPIC*np.sin(theta))

# Helper: circular mean of angles
def circ_mean(angles):
    arr = np.asarray(angles)
    if arr.size == 0:
        return 0.0
    s = np.sin(arr).mean()
    c = np.cos(arr).mean()
    return float(np.arctan2(s, c))

# Place papers near the mean angle of their topic neighbors
paper_angle = {}
for p in papers:
    nbr_topics = [v for v in G.successors(p) if node_types.get(v) == 'Topic']
    thetas = [topic_angle[v] for v in nbr_topics if v in topic_angle]
    theta = circ_mean(np.array(thetas)) if thetas else rng.uniform(0, 2*np.pi)
    # jitter to reduce overlap
    theta += rng.normal(scale=0.16)
    r = R_PAPER + rng.normal(scale=0.08)
    paper_angle[p] = theta
    pos[p] = (r*np.cos(theta), r*np.sin(theta))

# Place authors near the mean angle of their paper neighbors
for a in authors:
    nbr_papers = [v for v in G.successors(a) if node_types.get(v) == 'Paper']
    thetas = [paper_angle[v] for v in nbr_papers if v in paper_angle]
    theta = circ_mean(np.array(thetas)) if thetas else rng.uniform(0, 2*np.pi)
    theta += rng.normal(scale=0.16)
    r = R_AUTHOR + rng.normal(scale=0.16)
    pos[a] = (r*np.cos(theta), r*np.sin(theta))

# Colors, sizes, and shapes per type
type_color = {'Author': '#4C78A8', 'Paper': '#F58518', 'Topic': '#54A24B'}
type_shape = {'Author': 'o', 'Paper': 's', 'Topic': '^'}
sizes = {
    'Author': 500,
    'Paper': 500,
    'Topic': 500,
}

plt.figure(figsize=(9.5, 6.5))

# Draw edges first
nx.draw_networkx_edges(
    G, pos, arrows=True, arrowstyle='<|-|>', arrowsize=12,
    width=1.2, edge_color='#999999', alpha=0.7
)

# Draw nodes by type with distinct shapes
for nodelist, t in [(authors, 'Author'), (papers, 'Paper'), (topics, 'Topic')]:
    if not nodelist:
        continue
    nx.draw_networkx_nodes(
        G, pos, nodelist=nodelist,
        node_color=type_color[t], node_shape=type_shape[t],
        node_size=sizes[t], alpha=0.95, linewidths=1, edgecolors='white'
    )

# Labels: short paper titles; others as-is, sized per type
def short(s, n=28):
    s = str(s)
    return s if len(s) <= n else s[: n - 1] + '…'

# Build label dicts per type to control styling
paper_labels = {n: short(G.nodes[n].get('title', n)) for n in papers}
author_labels = {n: n for n in authors}
topic_labels = {n: n for n in topics}

nx.draw_networkx_labels(G, pos, labels=paper_labels, font_size=9)
nx.draw_networkx_labels(G, pos, labels=author_labels, font_size=8)
nx.draw_networkx_labels(G, pos, labels=topic_labels, font_size=9)

# Optional edge labels for small graphs
if G.number_of_edges() <= 30:
    edge_labels = nx.get_edge_attributes(G, 'relation')
    nx.draw_networkx_edge_labels(G, pos, edge_labels=edge_labels, font_size=8, label_pos=0.45)

# Legend with shapes
legend_elements = [
    Line2D([0], [0], marker=type_shape['Author'], color='w', label='Author',
           markerfacecolor=type_color['Author'], markeredgecolor='white', markersize=10, markeredgewidth=1),
    Line2D([0], [0], marker=type_shape['Paper'], color='w', label='Paper',
           markerfacecolor=type_color['Paper'], markeredgecolor='white', markersize=11, markeredgewidth=1),
    Line2D([0], [0], marker=type_shape['Topic'], color='w', label='Topic',
           markerfacecolor=type_color['Topic'], markeredgecolor='white', markersize=10, markeredgewidth=1),
]
plt.legend(handles=legend_elements, frameon=False, loc='upper left')

plt.axis('off')
plt.tight_layout()
plt.show()

---------------------------------------------------------------------------
ImportError                               Traceback (most recent call last)
Cell In[4], line 1
----> 1 import matplotlib.pyplot as plt
      2 from matplotlib.lines import Line2D
      3 import numpy as np

File ~/.conda/envs/jupyter-book/lib/python3.10/site-packages/matplotlib/__init__.py:161
    157 from packaging.version import parse as parse_version
    159 # cbook must import matplotlib only within function
    160 # definitions, so it is safe to import from it here.
--> 161 from . import _api, _version, cbook, _docstring, rcsetup
    162 from matplotlib._api import MatplotlibDeprecationWarning
    163 from matplotlib.rcsetup import cycler  # noqa: F401

File ~/.conda/envs/jupyter-book/lib/python3.10/site-packages/matplotlib/cbook.py:32
     29     from numpy import VisibleDeprecationWarning
     31 import matplotlib
---> 32 from matplotlib import _api, _c_internal_utils
     35 class _ExceptionInfo:
     36     """
     37     A class to carry exception information around.
     38
   (...)
     43     users and result in incorrect tracebacks.
     44     """

ImportError: /lib64/libstdc++.so.6: version `GLIBCXX_3.4.29' not found (required by /home/cehrett/.conda/envs/jupyter-book/lib/python3.10/site-packages/matplotlib/_c_internal_utils.cpython-310-x86_64-linux-gnu.so)

  • Example query: “Which authors wrote papers about a given topic?” Let’s traverse the graph to answer (Author → Paper → Topic).

# Pick a target topic that's present in the subset
all_topics = sorted({t for rec in records for t in (rec.get('topics') or [])})
TARGET_TOPIC = 'Climate'
print('Available topics:', all_topics)
print('Target topic:', TARGET_TOPIC)

authors_for_topic = set()
if TARGET_TOPIC is not None:
    # Walk Author -> Paper -> Topic
    for author, paper, ed in G.edges(data=True):
        if ed.get('relation') == 'authored':
            # Check if this paper links to the target topic
            for _, topic, td in G.out_edges(paper, data=True):
                if td.get('relation') == 'has_topic' and topic == TARGET_TOPIC:
                    authors_for_topic.add(author)

print(f'Authors with papers on "{TARGET_TOPIC}":', sorted(authors_for_topic))

5.3.2 Query → Paper + 2-Hop Graph Expansion#

Below we illustrate Graph RAG in a tiny way:

  1. Find the most relevant paper to a user query via semantic search over abstracts.

  2. Expand on the graph to include any papers exactly two hops away (e.g., Paper → Author → Paper).

This shows how graphs surface related context beyond the single top document.

from sentence_transformers import SentenceTransformer
import numpy as np

# Build a simple embedding index over the SAME subset used in the graph ("records")
paper_ids, titles, abstracts = [], [], []
for r in records:
    t = (r.get('abstract') or '').strip()
    if not t:
        continue
    paper_ids.append(r.get('id'))
    titles.append(r.get('title'))
    abstracts.append(t)

if not abstracts:
    raise ValueError('No abstracts available to index in this subset.')

encoder = SentenceTransformer('sentence-transformers/all-MiniLM-L6-v2')
embs = encoder.encode(abstracts)
# L2-normalize for cosine similarity via dot product
def l2norm(v):
    n = np.linalg.norm(v)
    return v / n if n else v
embs = np.array([l2norm(v) for v in embs], dtype='float32')

# Try your own query
query = 'What is the purpose of graph-based retrieval of scientific papers?'
qv = encoder.encode([query])[0]
qv = l2norm(qv)

# Top-1 by cosine similarity
scores = embs @ qv
top_idx = int(np.argmax(scores))
top_id = paper_ids[top_idx]
top_title = titles[top_idx]
top_abs = abstracts[top_idx]

print('Top-1 paper by semantic similarity:')
print(f'- {top_title} (id={top_id})\n')
print(top_abs[:1000])

# Graph expansion: papers two hops from the top paper
UG = G.to_undirected()
dists = nx.single_source_shortest_path_length(UG, top_id, cutoff=2)
node_types = nx.get_node_attributes(G, 'type')
two_hop_papers = [n for n, d in dists.items() if d == 2 and node_types.get(n) == 'Paper']

print('\nTwo-hop related papers via graph:')
if not two_hop_papers:
    print('(none found in this subset)')
else:
    rec_by_id = {r.get('id'): r for r in records}
    for pid in two_hop_papers:
        rec = rec_by_id.get(pid, {})
        title = rec.get('title', pid)
        print(f'\n- {title} (id={pid})')
        abs_txt = (rec.get('abstract') or '').strip()
        print(abs_txt[:800] if abs_txt else '(no abstract available)')

from utils import create_answer_box
create_answer_box('Please describe any changes that you think would make this workshop more useful in the future!', question_id='mod4_graph_rag_application')
